LED Recessed Linear Lighting
LED Recessed Linear Lighting Feature:
Can be linkable to be a continuous line.
Can be an L-shaped link, T-Shaped link, cross-type link.
As high as 100lm/w.
No dark areas of splicing.
Flicker-free.
Optional dimming: 0-10V, PWM, resistors.
Length of 600mm, 1200mm, 1800mm, 2400mm to choose from.
3-year warranty.
Description
LED Recessed Linear Lighting specification:
Input voltage: AC100-277v 50-60Hz.
Color temperature: 3000-3300K, 4000-4500K, 5000-5500K,6000-6500K is available.
CRI>80.
Materials: Aluminum & PC cover.
Beam angle: 120 degrees.
IP grade: IP 20.
Colour: Silver/White/Black.
LED Recessed Linear Lighting Warranty: 3 years.
Order SKU: 201573101. 20W. 600mm*90*35mm. 144 pcs SMD 2835. 2000-2200lm. (+/-5%)
Order SKU: 201573102. 40W. 1200mm*90*35mm. 288 pcs SMD 2835. 4000-4400lm. (+/-5%)
Order SKU: 201573103. 60W. 1800mm*90*35mm. 432 pcs SMD 2835. 6000-6600lm. (+/-5%)
Order SKU: 201573104. 80W. 2400mm*90*35mm. 576 pcs SMD 2835. 8000-8800lm. (+/-5%)
LED Recessed Linear Lighting application.
LED Recessed Linear Lighting specification:
Input voltage: AC100-277v 50-60Hz.
Color temperature: 3000-3300K, 4000-4500K, 5000-5500K,6000-6500K is available.
CRI>80.
Materials: Aluminum & PC cover.
Beam angle: 120 degrees.
IP grade: IP 20.
Colour: Silver/White/Black.
Linear Lighting Warranty: 3 years.
Order SKU: 201573101. 20W. 600mm*90*35mm. 144 pcs SMD 2835. 2000-2200lm. (+/-5%)
Order SKU: 201573102. 40W. 1200mm*90*35mm. 288 pcs SMD 2835. 4000-4400lm. (+/-5%)
Order SKU: 201573103. 60W. 1800mm*90*35mm. 432 pcs SMD 2835. 6000-6600lm. (+/-5%)
Order SKU: 201573104. 80W. 2400mm*90*35mm. 576 pcs SMD 2835. 8000-8800lm. (+/-5%)
LED Recessed Linear Lighting application.
Wide beam lighting distribution for home lighting, office lighting, commercial lighting, industrial lighting.
CE Conformity Certified by TUV.
RoHS Compliant Tested by TUV.
Eco-Friendly & Energy-Saving.
Lifetime:35000 hours.

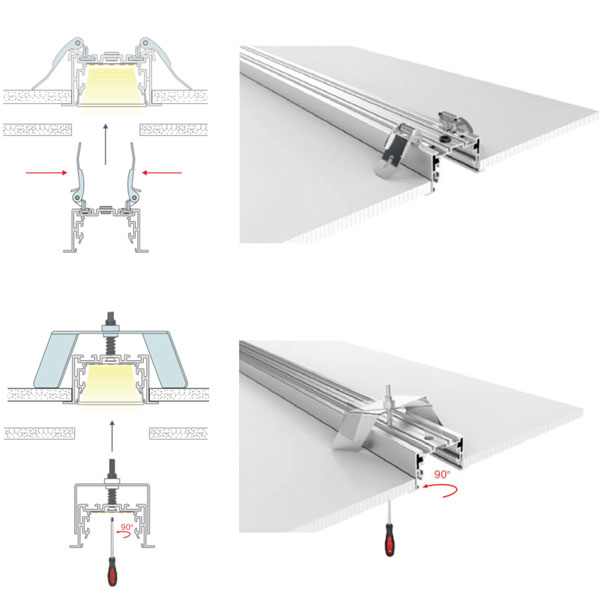

Installation Method: Recessed.
